PULVERIZED COAL INJECTION (PCI)

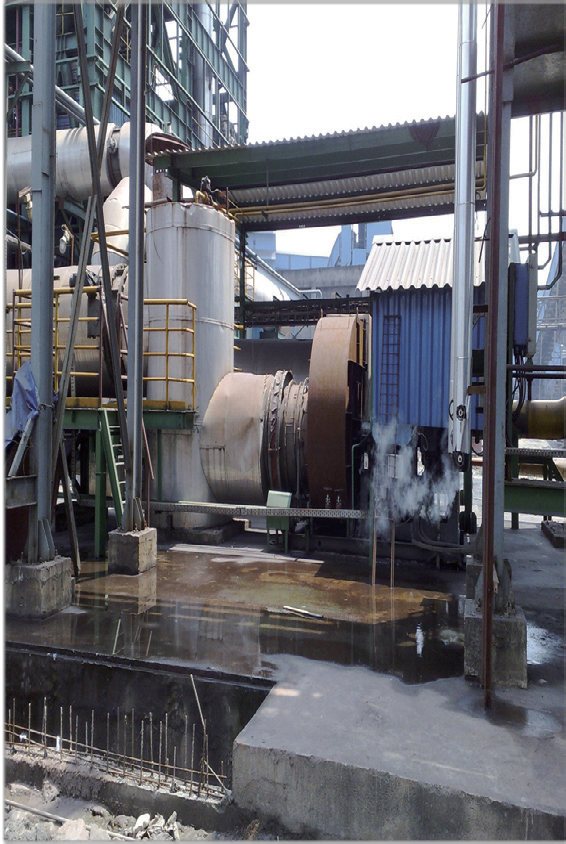

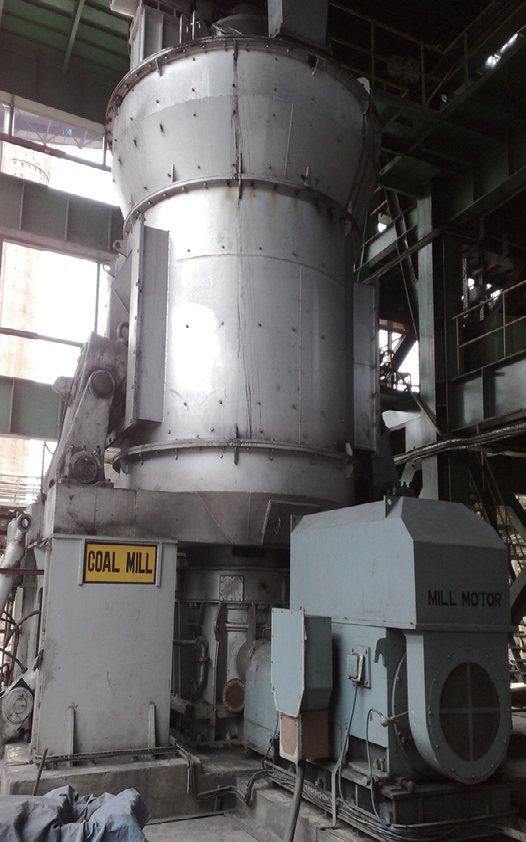

   Coal Mill                                                                Hot Fumes Generating Stove

The PCI is one of the major measures to considerably reduce the coke ratio and improve indirect reduction. The substitution with cheaper coal for expensive coke can lower the cost of hot metal making. For these reasons, MEPC Group, in cooperation with research and technical partners, has developed PCI technology and places great emphasis on transfer and application of this technology, being China first export of the PCI technologies and equipment, and later transfer of PCI technologies for blast furnace ranging from 320m³ to 4064m³.

Salient Features of PCI Applied with MEPC’s Technology:

● Over200kg/t PCL rate can be reached at lowest operation cost

● High density PC pneumatical conveying: ratio of PC to air>40kg/Nm3

● Distributor: discrepancy<5%. Service life >10 years

● Adjustable feeder: tolerance< 1%

● Long life lance: 5 times that of common lance

● Safety monitoring unit: monitoring CO and O2 accurately

● Individual pipe block monitoring: identifying pipe block in time

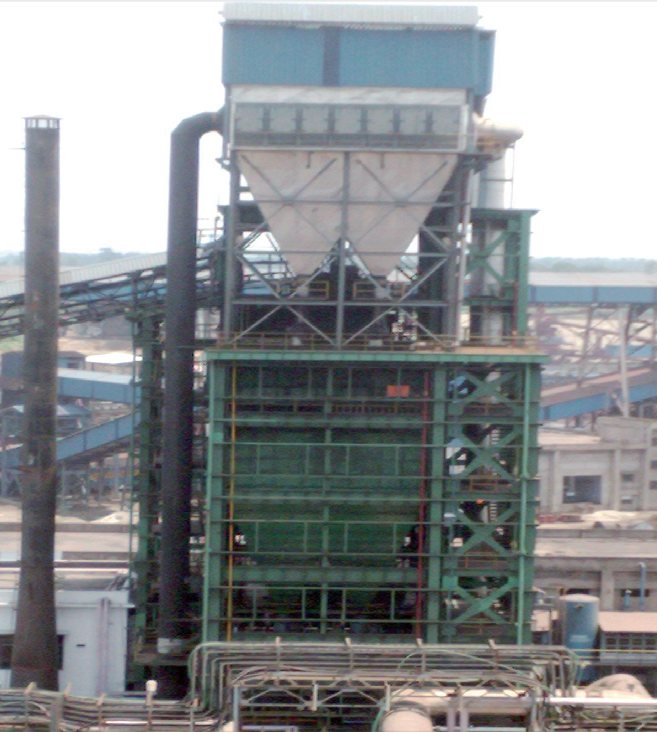

PCI system erected in India
